Produkt introduktion

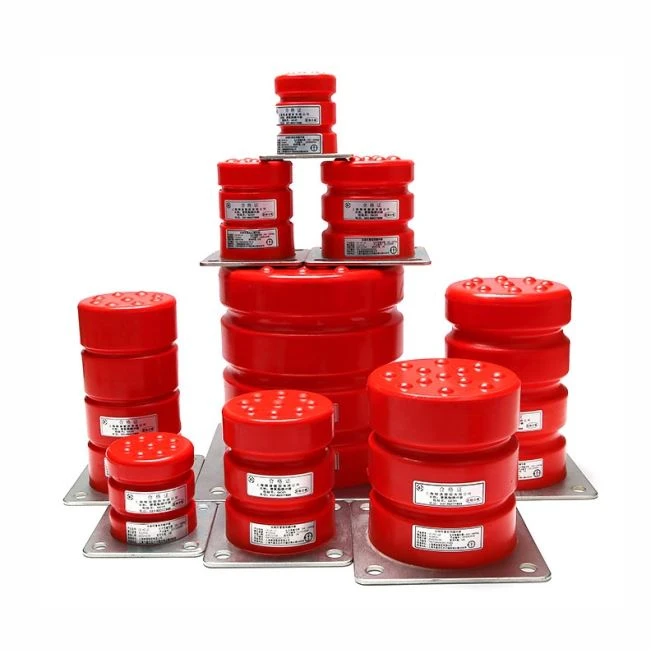

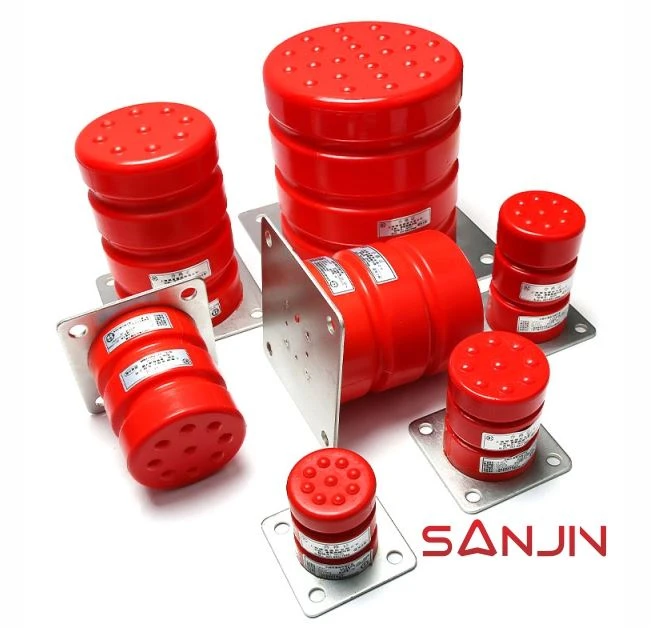

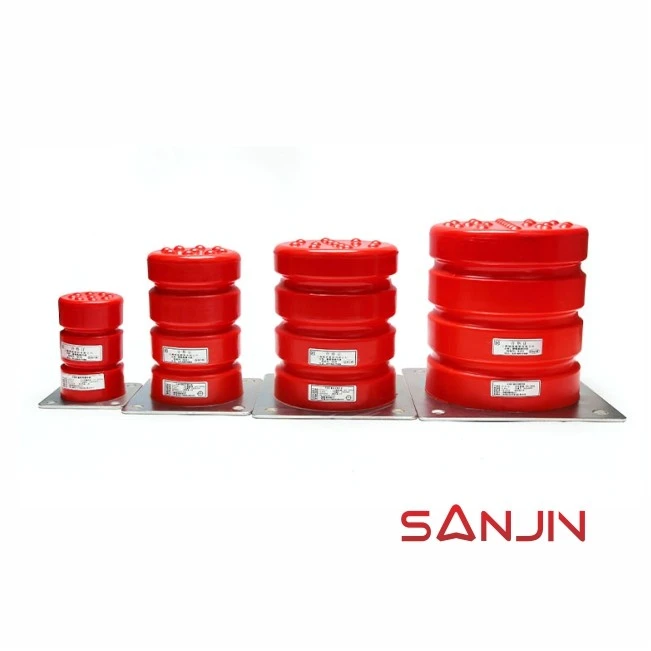

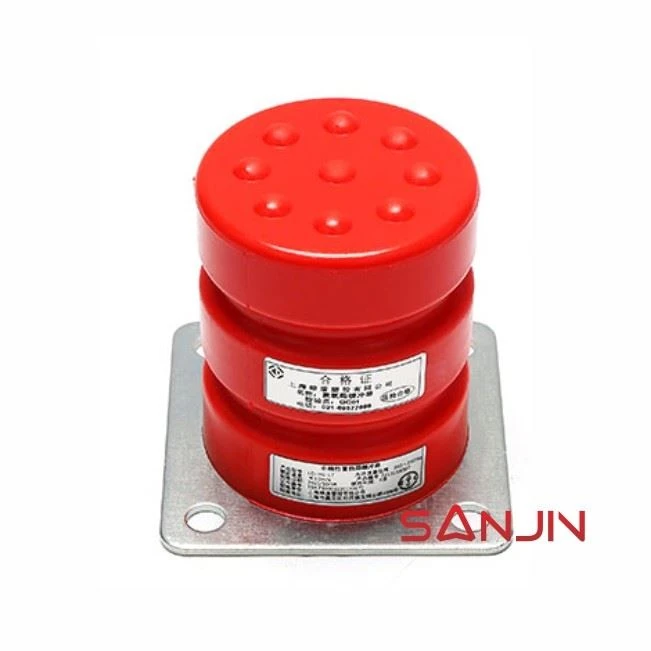

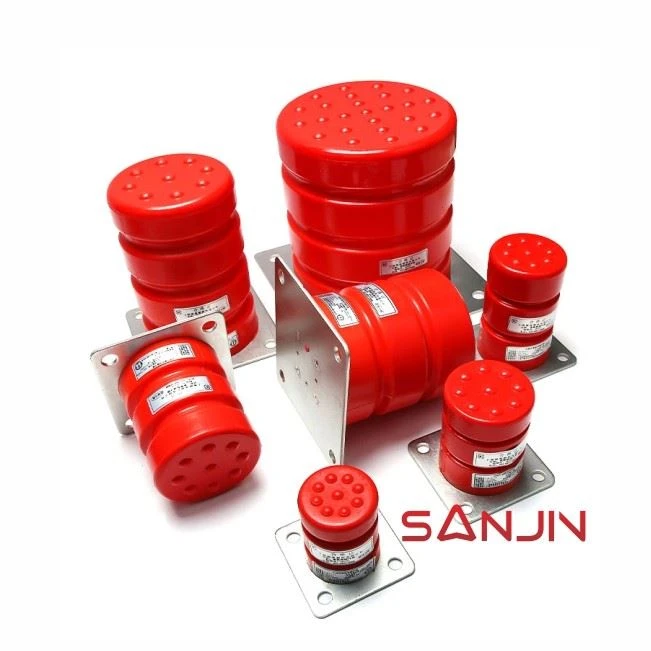

Hiss polyuretanbuffert LD-HC-L1 ~ L25.
Nytt polyuretanmaterial, inget buller, liten specifik vikt, enkel struktur, enkel installation och underhåll, bra buffringseffekt, Höghållfast stålplåt integrerad bas, stabil och hållbar, fyrhålsfixering är lätt att använda, Kompletta specifikationer, stödanpassning.
Produktparameter (specifikation)

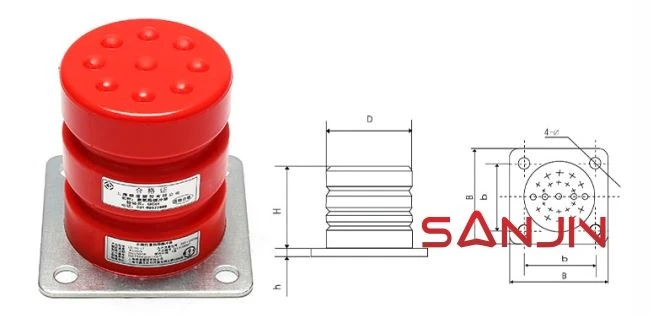

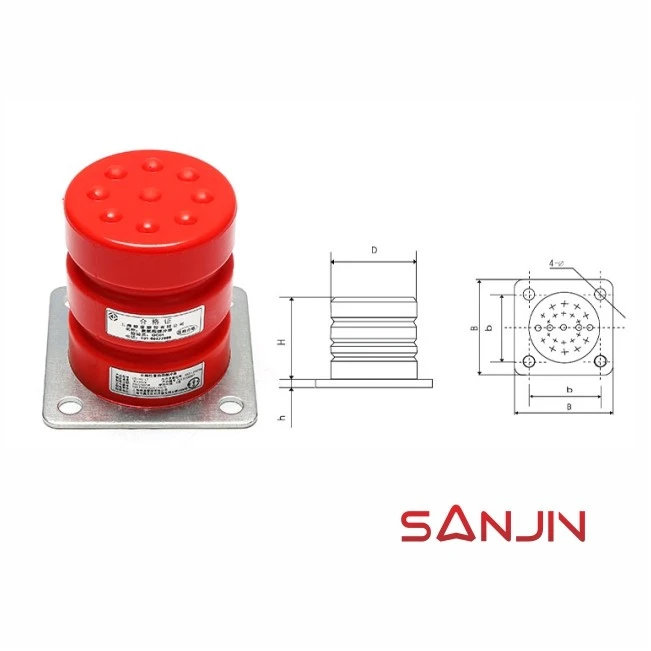

TYP | Maximalt kompressionsslag (mm) | Specifikation (φD*H) | total tillåten massaB*A (P+Q kg) | Installationsstorlek | Nominell hastighet | |||
B | b | h | ∮ | ≤1,0 m/S | ||||
LD-HC-L1 | 70 | φ65x 80 | 200 ~ 1200 | 95 | 65 | 4 | 12 | ≤1,0 m/S |
LD-HC-L2 | 70 | Φ80x 80 | 200 ~ 1200 | 108 | 80 | 4 | 12 | ≤1,0 m/S |
LD-HC-L3 | 88 | Φ80x 100 | 200 ~ 2000 | 108 | 80 | 4 | 12 | ≤1,0 m/S |
LD-HC-L4 | 121 | Φ80x 128 | 200 ~ 2000 | 108 | 80 | 4 | 12 | ≤1,0 m/S |
LD-HC-L5 | 72 | Φ100x 80 | 500 ~ 2000 | 128 | 96 | 4 | 14 | ≤1,0 m/S |
LD-HC-L6 | 88 | Φ100x 100 | 500 ~ 2200 | 128 | 96 | 4 | 14 | ≤1,0 m/S |
LD-HC-L7 | 114 | Φ100x 120 | 500 ~ 2500 | 128 | 96 | 4 | 14 | ≤1,0 m/S |
LD-HC-L8 | 144 | Φ100x 160 | 500 ~ 3000 | 128 | 96 | 4 | 14 | ≤1,0 m/S |
LD-HC-L9 | 177 | Φ100x 200 | 500 ~ 2600 | 128 | 96 | 4 | 14 | ≤1,0 m/S |
LD-HC-L10 | 90 | Φ120x 100 | 500 ~ 3000 | 160 | 126 | 4 | 14 | ≤1,0 m/S |
LD-HC-L11 | 165 | Φ100x 192 | 1000 ~ 3500 | 160 | 126 | 4 | 14 | ≤1,0 m/S |
LD-HC-L12 | 121 | Φ130x 150 | 800 ~ 4800 | 160 | 126 | 4 | 14 | ≤1,0 m/S |
LD-HC-L13 | 170 | Φ130x 200 | 1000 ~ 4200 | 160 | 126 | 4 | 14 | ≤1,0 m/S |
LD-HC-L14 | 108 | Φ140x 120 | 500 ~ 3000 | 160 | 126 | 4 | 14 | ≤1,0 m/S |
LD-HC-L15 | 162 | Φ150x 180 | 1800 ~ 4000 | 160 | 156 | 4 | 14 | ≤1,0 m/S |
LD-HC-L16 | 199 | Φ150x 240 | 1000 ~ 4500 | 200 | 156 | 4 | 14 | ≤1,0 m/S |
LD-HC-L17 | 184 | Φ160x 200 | 1800 ~ 5800 | 200 | 156 | 4 | 14 | ≤1,0 m/S |
LD-HC-L18 | 144 | Φ200x 160 | 1800 ~ 6000 | 246 | 196 | 4 | 16 | ≤1,0 m/S |
LD-HC-L19 | 173 | Φ200x 200 | 1800 ~ 7500 | 246 | 196 | 4 | 16 | ≤1,0 m/S |
LD-HC-L20 | 198 | Φ200x 200 | 1800 ~ 7800 | 246 | 196 | 4 | 16 | ≤1,0 m/S |
LD-HC-L21 | 225 | Φ200x 250 | 1800 ~ 8000 | 246 | 196 | 4 | 16 | ≤1,0 m/S |
LD-HC-L22 | 180 | Φ250x 200 | 2000 ~ 8000 | 320 | 250 | 4 | 18 | ≤1,0 m/S |
LD-HC-L23 | 220 | Φ250x 250 | 2000 ~ 8200 | 320 | 250 | 4 | 18 | ≤1,0 m/S |
LD-HC-L24 | 299 | Φ250x 320 | 2000 ~ 8500 | 320 | 250 | 6 | 18 | ≤1,0 m/S |
LD-HC-L25 | 230 | Φ320x 250 | 2000 ~ 9000 | 400 | 315 | 6 | 22 | ≤1,0 m/S |
